Loop Vent Island Sink

Quick video explaining one way to vent a peninsula or island kitchen sink drain. Sland sink drain venting procedures.

Archaiccomely Round Kitchen Island Sink Wine Rack Fac Bbq

Foot Vent For Island Sink Could An Inspector Be Wrong

Island Sink Drain Piping Venting

An island vent rises as high as possible under an island before running to a regular vertical vent.

Loop vent island sink. All by master plumber tim carter and. Loop vents for venting islands. You must tie the bottom of the vent loop directly into the drain under the floor to allow for any condensate to drain out otherwise this pipe could fill up with water and block.

Here we explain that because there may be is no nearby vertical wall through which to run a conventional vertical plumbing vent up through the building roof a different approach is needed for routing the sink drain waste and vent piping to. The loop vent needs to be modified but it looks like the current installation is not done correctly and we may have an inspection issue if we keep it. The vent then turns down goes through the floor and along the drain pipe then turns back up to join the main stack several inches above the sink level.

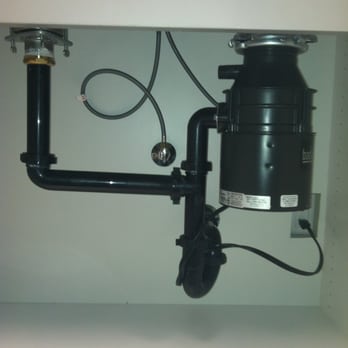

If you plan to attach a garbage disposer to an island sink replace the sanitary tee and cleanout adapter with a flat patterned cleanout tee. It keeps air in the drain system and prevents siphoning of the p trap. This article describes the special venting requirements for island sinks or peninsula sinks found in some kitches.

Hi as part of a kitchen remodel we are moving our island sink. Go there to get plumbing diagrams of a loop vent a full video showing you the entire loop vent and text describing the science as to how a loop vent works. A loop vent is a way of venting the trap installed in an island sink.

The loop vent allows gas to flow up the pipe as the water flows down the pipe. That makes it easier to snake the top of the loop if it gets plugged. How to vent a peninsula or island sink general drain venting information.

Loop vents may be used at island sinks or free standing sinks where there is no direct route from above the sinks flood rim to a vertical vent stack. Since all drains need to be ventilated to allow for sewer gas to escape instead of building in the pipe.

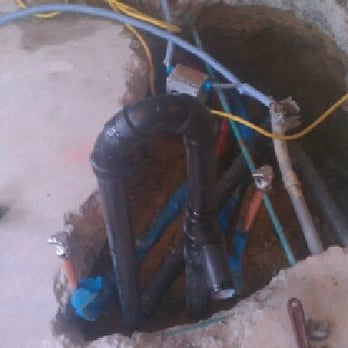

Remodel Moved Water And Drain With Loop Vent For Island
